In Coffs Harbour, many projects sit on alluvial deposits or residual soils from the nearby Orara Valley, which means bearing capacity can vary sharply within a single site. We routinely see clay layers that soften with seasonal rain, making shallow footings risky for medium to heavy structures. For these conditions, a well-designed raft foundation spreads the load over a larger area, reducing differential settlement. Before finalising the slab geometry, we always correlate the soil profile with a dilatometer test to obtain lateral stress and modulus values, and then cross‑check those results against the site’s groundwater regime. That two‑step approach gives us a realistic stiffness matrix for the mat.
A raft foundation in Coffs Harbour demands a subgrade reaction modulus that reflects the wet‑season softening of alluvial clays – get that wrong, and differential settlement follows.
Method and coverage
The coastal humidity of Coffs Harbour keeps soil moisture relatively high throughout the year, which directly affects the elastic modulus assumed in mat design. When we model the raft, we apply a subgrade reaction modulus (k) that accounts for the wet‑season softening of the underlying clays. In our workflow, we combine in‑situ testing with lab consolidation curves to refine that k value. For sites where reactive clays are present, we integrate soil‑structure interaction analyses using the data from a ground penetrating radar survey to map shallow anomalies before placing the reinforcement. The final design usually follows AS 3600 for the concrete section and AS 1726 for the geotechnical parameters, ensuring the mat can tolerate the cyclic moisture changes typical of this region.

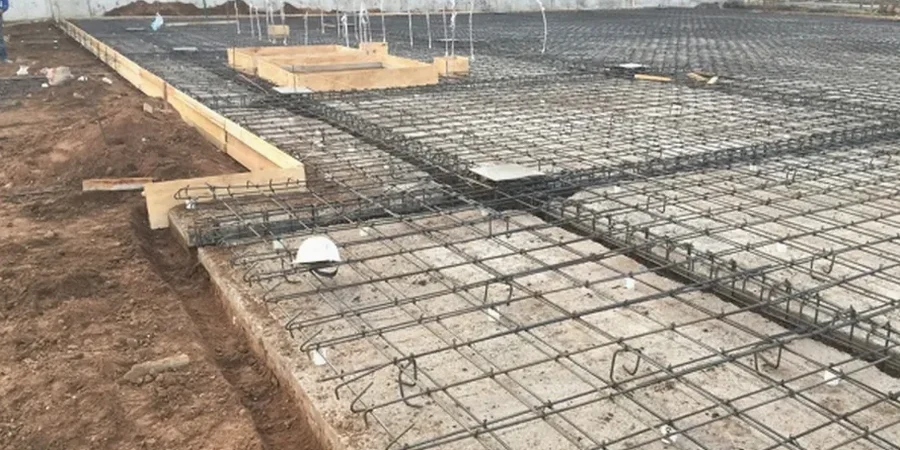

Technical reference image — Coffs Harbour
Regional considerations
Coffs Harbour sits on a floodplain with the highest annual rainfall on the NSW north coast – about 1,680 mm per year. That water percolates into the soil profile and can cause clay layers to swell or soften depending on the mineralogy. For a raft foundation designed without considering the saturated shear strength of the subgrade, the risk is long‑term consolidation and uneven settlement. We recently assessed a commercial slab where the original design used a dry‑season modulus; after the first wet winter, differential movements exceeded 25 mm. The fix required retrofitting with mini‑piles – a costly lesson that proper mat design avoids from the start.
This service complements our laboratory testing work for a complete project analysis.
Technical parameters
Parameter
Typical value
Subgrade reaction modulus (k)
12–40 MN/m³ (site‑specific)
Maximum differential settlement
≤ 15 mm for RC frames
Concrete strength grade
N32 to N40 per AS 3600
Reinforcement cover
50 mm (exposure classification B2)
Design working life
50 years (normal importance)
Minimum raft thickness
300 mm (residential) / 500 mm (commercial)
Related services
01
Site Investigation & Soil Profiling
Boreholes, test pits, and in‑situ tests (SPT, dilatometer, plate load) to characterise the subgrade strength and variability across your site.
02
Bearing Capacity & Settlement Analysis
Finite‑element modelling of the raft‑soil interaction using site‑specific parameters, with serviceability checks for total and differential settlement.
03
Structural Raft Detailing & Reporting
Reinforcement layouts, concrete grade selection, and joint detailing per AS 3600, accompanied by a geotechnical‑structural design report ready for council submission.
Standards that apply
AS 3600:2018 Concrete Structures, AS 1726:2017 Geotechnical Site Investigations, AS/NZS 1170.0:2002 Structural Design Actions – General, AS 1289 Standard Test Method for Nonrepetitive Static Plate Load Tests of Soils
Top questions
What is the difference between a raft foundation and a strip footing for Coffs Harbour soils?
A raft foundation spreads the structural load over the entire footprint, which is advantageous where the topsoil has low bearing capacity or variable moisture content. Strip footings concentrate load along walls and can cause differential settlement if the subgrade softens locally. In Coffs Harbour, where reactive clays and alluvial silts are common, a raft reduces the risk of uneven movement and is often the more economical solution for commercial or multi‑residential buildings.
How much does a raft foundation design cost in Coffs Harbour?
For a typical residential or light commercial project in Coffs Harbour, our design fee ranges between AU$1,520 and AU$6,310, depending on the site area, number of boreholes required, and the complexity of the soil profile. The final quote is provided after a preliminary site review.
What soil tests are essential before designing a raft in this region?
We always run a consolidation test to estimate the compressibility of the clay layers, plus a series of Atterberg limits to classify the soil reactivity. A plate load test at the proposed bearing depth gives the subgrade reaction modulus directly, and we complement that with a dilatometer test for lateral stress and modulus values. These tests together provide reliable input for the raft design software.
Can a raft foundation be designed for a sloping site in Coffs Harbour?
Yes, but the design must account for potential lateral movement and the risk of differential settlement between the uphill and downhill sides. We typically specify a stepped or tapered raft, and we always include a slope‑stability analysis using the site’s shear strength parameters. Drainage behind the raft is also critical to prevent water pressure from building up under the slab.
