The steep hillsides and high seasonal rainfall that define Coffs Harbour create a constant demand for reliable slope stability analysis. With the city sitting on a mix of weathered metasediments and residual clays, the combination of intense east-coast lows and urban development on sloping lots means that even small cuts can trigger progressive failure. Our approach integrates field mapping with limit-equilibrium modeling to capture how water infiltration and soil fabric interact. For projects near the Coffs Harbour CBD or along the Orara Way, we routinely combine this analysis with a capacidad de carga study to confirm that foundations remain safe under perched conditions. The goal is always to provide a defensible factor of safety that meets local council requirements.
Even moderate slopes in Coffs Harbour can fail after prolonged rain; our analysis pinpoints the critical surface before construction begins.
Method and coverage
We use both two-dimensional and three-dimensional numerical models to evaluate stability, adapting the method to the geometry of each site. The process starts with a detailed topographical survey and a review of historical aerial imagery to identify past movement. Soil samples from boreholes are then tested for shear strength parameters, including peak and residual values. In Coffs Harbour, we often encounter colluvium layers that require special attention, and to capture their behaviour we integrate data from a dilatometro test, which provides reliable moduli for strain-softening analysis. For deeper slip surfaces we supplement with tomografia sismica to map bedrock geometry without drilling extra holes. The final output includes a risk rating, recommended mitigation measures, and monitoring protocols.

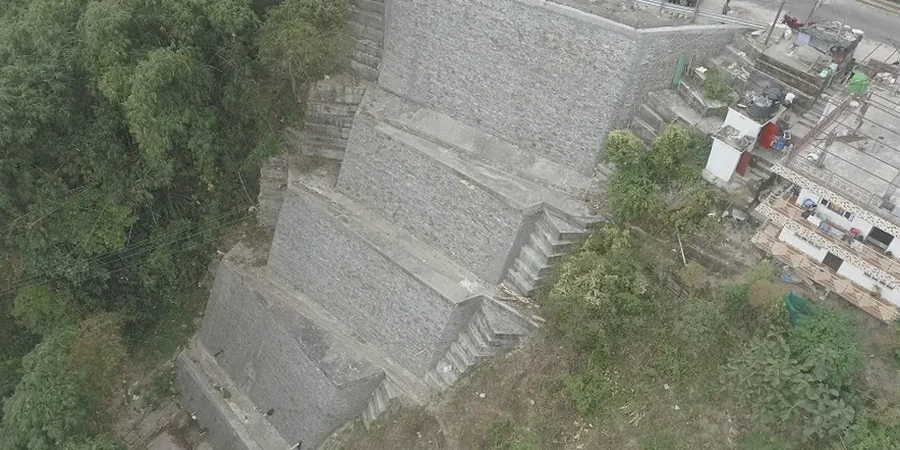

Technical reference image — Coffs Harbour
Regional considerations
Australian Standard AS 4678:2002 sets the framework for earth-retaining structures, but in Coffs Harbour the local council overlay adds stricter requirements for sites with slopes steeper than 15 degrees. The primary risk is that a perched water table develops quickly during a storm, reducing effective stress and triggering a shallow translational slide. Over the years we have seen cases where fill placed on a natural hillside without proper compaction or drainage led to slow creep that eventually damaged retaining walls. To mitigate this, our reports always specify subsurface drainage measures and, where necessary, recommend a muros contencion system designed for the actual groundwater conditions rather than assumed values.
Detailed walk-over survey to identify tension cracks, seepage zones, and existing instability indicators.
02
Geotechnical Drilling & Sampling
Boreholes with undisturbed tube sampling to obtain representative shear strength parameters for the colluvium and residual soil layers.
03
Limit-Equilibrium Modeling
Two-dimensional and three-dimensional analysis using SLIDE and FLAC3D for both static and pseudo-static seismic cases.
04
Mitigation Design & Monitoring
Recommendations for drainage, soil nails, or retaining structures, plus inclinometer installation for post-construction verification.
Standards that apply
AS 4678:2002 Earth-retaining structures, AS 1726:2017 Geotechnical site investigations, AS/NZS 1170.4:2007 Structural design actions (earthquake)
Top questions
What is the typical cost range for a slope stability analysis in Coffs Harbour?
A standard residential or small commercial study in the Coffs Harbour area generally falls between AU$1.910 and AU$5.510. The final price depends on the number of boreholes, the complexity of the geology, and whether additional laboratory testing is required.
How long does a slope stability analysis take from start to finish?
For a straightforward site with accessible terrain, the entire process including fieldwork, lab testing, modeling, and reporting typically takes three to four weeks. If the site has difficult access or requires deep boreholes, allow an extra week.
Why is Coffs Harbour particularly prone to slope instability?
The combination of steep topography, high annual rainfall (over 1,600 mm), and a subsurface of weathered phyllite and schist creates a natural predisposition to shallow landslides. The residual clay soils lose significant strength when saturated, and the region experiences frequent east-coast lows that can dump 200 mm in a single day.
